BS 6364 Cryogenic Gate Valve, 1/2-2 Inch, Class 150-800 LB

Key Specifications / Features

Model No.VF-231212-FSGV-03

Elevate your cryogenic applications with our meticulously crafted BS 6364 Cryogenic Gate Valves. Manufactured with precision and excellence, these valves adhere to API 602, ASME B16.34, and BS 5352 standards, ensuring top-notch performance. With a size range from 1/2 to 2 inches and available in Class 150-800 LB, these valves boast ASTM A105 construction for durability.

Categories: Forged Steel Gate Valves

Tags: BS 6364 Gate Valve , ASTM A105N Gate Valve , BS 5352 Gate Valve , ASME B16.34 Gate Valve , 1/2 Inch Gate Valve , 2 Inch Gate Valve , Class 150 LB Gate Valve , Class 800 LB Gate Valve

Detail Information

BS 6364 Cryogenic Gate Valve, 1/2-2 Inch, Class 150-800 LB

Design construction: API 602, ASME B16.34, BS 5352, BS 6364
Testing: API 598
Face to face: ASME B16.10
Size: 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch
      DN15, DN20, DN25, DN32, DN40, DN50
Class: 150 LB, 300LB, 400 LB, 600 LB, 800 LB, PN20, PN50, PN63, PN100, PN130
Flanges: ASME B16.5
Spiral wound gasket
Integral backseat
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Welded body- bonnet joint also available


More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.


Ratings: stainless steel A182- F316
- class 150 = 275 psig @ 100°F 19 bar + 38°C
- class 300 = 720 psig @ 100°F 49 bar + 38°C

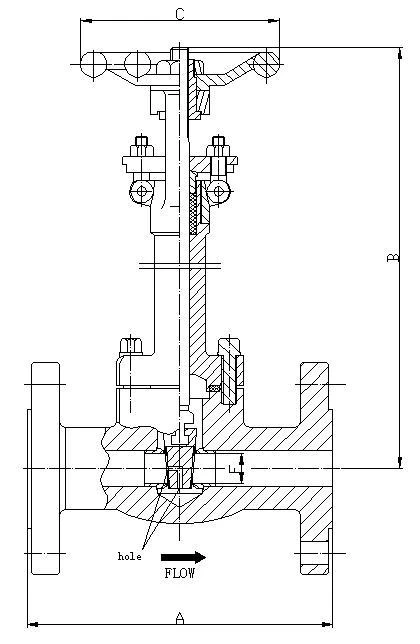

150-800 LB  NPS (in) 1/2 3/4 1 11/4 11/2 2
DN mm 15 20 25 32 40 50
D 13 18 24 29 36.5 46.5



L



 		 SW:NPT OR RC 92 111 120 120 140 178
CL150;CL300 140 152 165 178 190 216
CL600 165 190 216 229 241 292
PN1.6-4.0 130 150 160 180 200 250
PN6.4-10.0 170 190 210 230 250 250
H 333 360 407 475 475 551
W 125 125 160 160 180 200

KG
 		   7.1 9.4 13.5 15.0 17.8 28.0
CL300/CL600 7.0/8.0 9.4/11.1 12.5/13.4 19.8/21.5 20.1/22.6 24.0/27.0

Nickname*:
E-mail*:
Rate*:
Comments*:

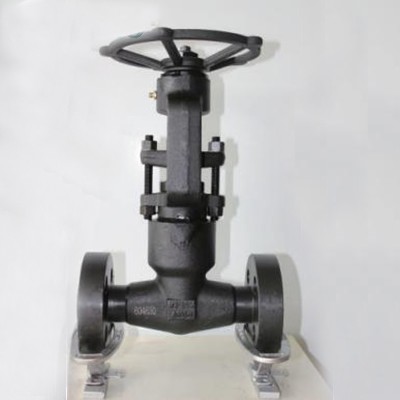

Next: ASME B16.34 Gate Valve, ASTM A105, 1/2-2 Inch, Class 2500 LB
