ASME B16.34 Gate Valve, ASTM A105, 1/2-2 Inch, Class 2500 LB

Key Specifications / Features

Model No.VF-231212-FSGV-04

We present ASME B16.34 Gate Valves designed for superior performance. Spanning sizes from 1/2 to 2 inches and engineered for Class 2500 LB applications, these valves conform to BS 5352 standards. Crafted with precision using materials such as ASTM A105 and ASTM A182 F304, our valves boast a bolted bonnet design and offer the choice between full and standard port configurations.

Categories: Forged Steel Gate Valves

Tags: 1/2 Inch Gate Valve , 2 Inch Gate Valve , ASTM A105N Gate Valve , ASME B16.34 Gate Valve , Class 2500 LB Gate Valve , ASTM A182 F304 Gate Valve

Detail Information


ASME B16.34 Gate Valve, ASTM A105, 1/2-2 Inch, Class 2500 LB

Design Construction: API 602, ASME B16.34, BS 5352
Testing: API 598
Body Bonnet Weld: ASME IX
Size: 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, DN15, DN20, DN25, DN32, DN40, DN50
Class: 150 LB, 300LB, 400 LB, 600 LB, 800 LB, PN20, PN50, PN63, PN100, PN130
Screwed Ends (NPT): ASME B1.20.1
Butt Welding Ends: ASME B16.25
Integal Backseat
Marking MSS SP25
Outside Screw and Yoke(OS & Y)

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.

Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

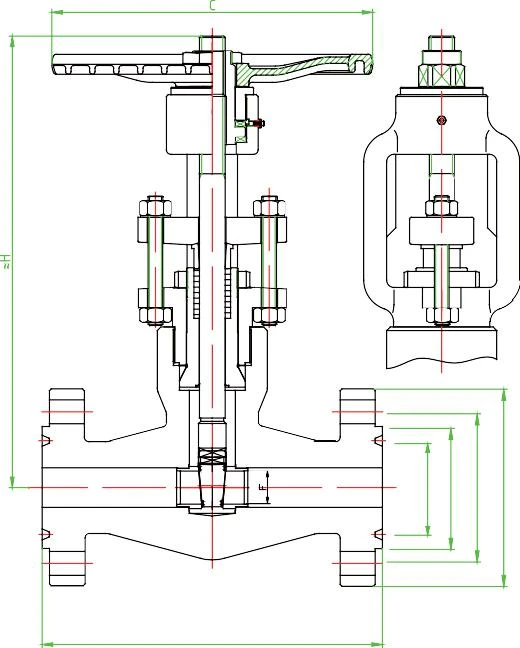

DN
L

H

W

P

A

B

C

T

F

n-

kg

（in)
1/2 15 264 321 180 42.9 65.1 89.0 133 30.5 6.35 4-23 16.7
3/4 20 273 321 180 50.8 73.0 95.2 140 32.0 6.35 4-23 17.0
1 25 308 321 180 60.3 82.5 107.9 159 35.0 6.35 4-26 24.3
11/4 32 352.2 373 200 72.2 101.6 130.2 184 38.5 7.92 4-29 30.8
11/2 40 387.2 406 200 82.6 114.0 146.0 203 44.5 7.92 4-32 40.5
2 50 454.2 495 300 101.6 133.0 171.4 235 51.0 7.92 8-29 45.5
