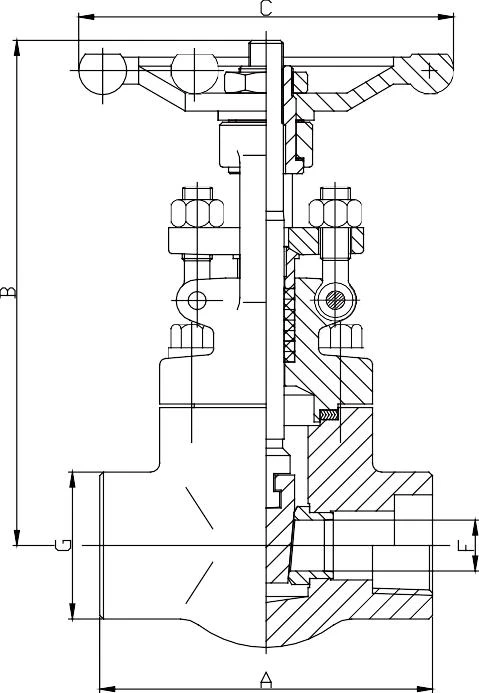

OS & Y Gate Valve, API 602, 1/4-2 Inch, 900-1500 LB, BW End

Key Specifications / Features

Model No.VF-231212-FSGV-02

Explore our state-of-the-art outside screw & yoke gate valves meticulously manufactured in accordance with API 602, ASME B16.34, and BS 5352 standards. Ranging from 1/4 to 2 inches, our valves cater to Class 900-1500 LB applications. With a size range from DN6 to ND50 and pressure ratings spanning PN150 to PN250, these valves are available in both full and standard port configurations.

Categories: Forged Steel Gate Valves

Tags: ASTM A105N Gate Valve , API 602 Gate Valve , ASME B16.34 Gate Valve , BS 5352 Gate Valve , 1/4 Inch Gate Valve , 2 Inch Gate Valve , Class 1500 LB Gate Valve , Class 900 LB Gate Valve

Detail Information

OS & Y Gate Valve, API 602, 1/4-2 Inch, 900-1500 LB, BW End

Design Construction:
API 602, ASME B16.34, BS 5352
Testing according to API 598
Size: 1/4 Inch, 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch
         DN6, DN10, DN15, DN20, DN25, DN32, DN40, DN50
Class: 900 LB, 1500 LB, PN150, PN250
Spiral-wound gasket
Integral backseat
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Outside Screw and Yoke (OS & Y)
Self aligning two piece packing gland

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.


Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C
