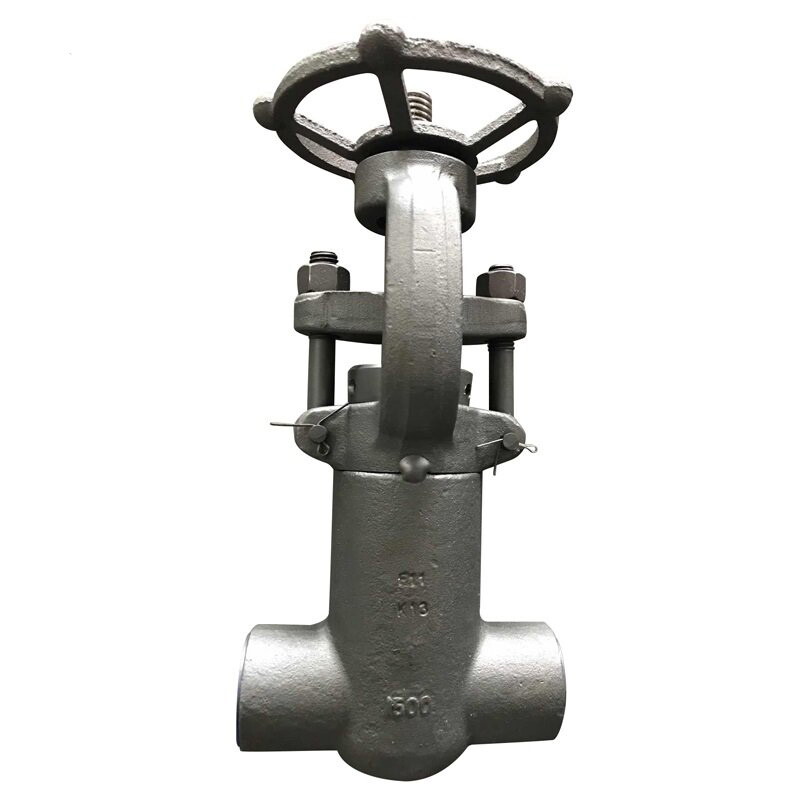

Seal Bonnet Gate Valve, ASTM A105N, BS 5352, 2 Inch, 1500 LB

Key Specifications / Features

Model No.VF-240220-FSGV-02

Manufacturer of seal bonnet gate valves in compliance with BS 5352 and ANSI B16.34 standards. Available in 2-inch size, Class 1500 LB rating, reduce port design, ASTM A105N material. Equipped with handwheel operation, raise flanged end. Also offered in DN50, PN250 specifications.

Categories: Forged Steel Gate Valves

Tags: Pressure Seal Bonnet Gate Valve , BS 5352 Gate Valve , ASTM A105N Gate Valve , 2 Inch Gate Valve , Class 1500 LB Gate Valve , Reduced Bore Gate Valve , RF End Gate Valve

Detail Information

Standard: API 602, BS 5352, ANSI B16.34
Material: ASTM A105N
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
End Connection: RF
Port: Reduce Port
Operating: Hand Wheel
Test & Inspection: API 598
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -29ºC - +425ºC


Next: ASTM A182 F22 Gate Valve, API 602, 2 Inch, Class 2500 LB, RF

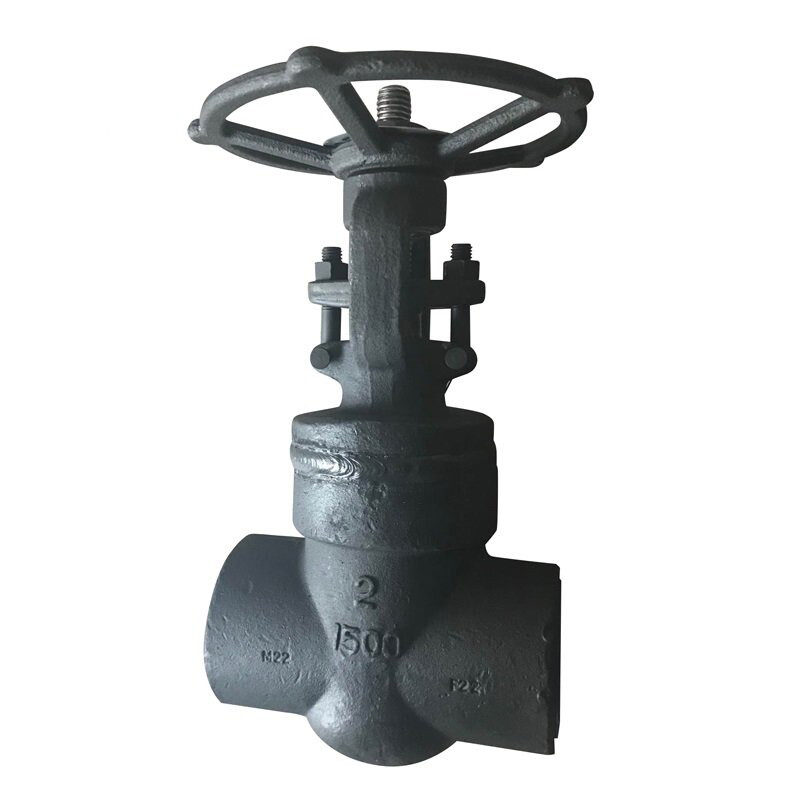

Previous: Welded Bonnet Gate Valve, API 602, ASTM A105, 2 Inch, 1500 LB
