Key Specifications / Features
Model No.VF-231212-FSGV-05
As a leading forge in China, our mill specializes in the production of Forged Steel Gate Valves, adhering to stringent standards including ASTM A182 F304, ASME B16.34, and BS 5352. Available in sizes ranging from 1/2 to 2 1/2 inches, these valves are engineered for Class 150-600 LB applications. The design features integral flanges and an Outside Screw & Yoke mechanism, ensuring robust performance and ease of operation.
Categories:
Forged Steel Gate Valves
Tags:
Class 150 LB Gate Valve
, 1/2 Inch Gate Valve
, ASTM A182 F304 Gate Valve
, BS 5352 Gate Valve
, ASME B16.34 Gate Valve
, Class 600 LB Gate Valve
, 2-1/2 Inch Gate Valve
Design Construction: ASME B16.34, BS 5352
Full port type
Testing: API 598
Size: 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, DN15, DN20, DN25, DN32, DN40, DN50
Class: 150 LB, 300LB, 400 LB, 600 LB, PN20, PN50, PN63, PN100
Face to face: ASME B16.10
Flanges: ASME B16.5
Body Bonnet Gasket ring joint type
Spiral wound type gasket on request
Integral body flanges
Integral backseat
Marking MSS SP25
Outside Screw and Yoke (OS & Y)
Self aligning two piece packing gland
More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.
Ratings:
- carbon steel class 2500 6170 psig @ 100°F 425 bar + 38°C

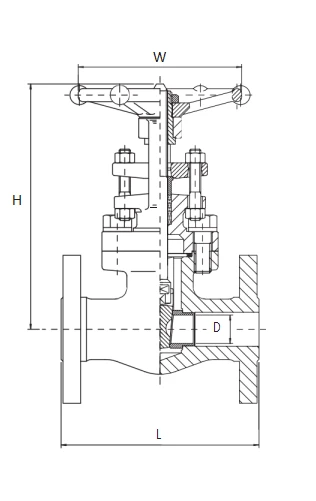

| Class |
NPS(in) |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
| 150 |
D
|
10
|
13
|
19.1
|
21
|
31.8
|
38.1
|
48.5
|
| 300 |
| 600 |
| 150 |
L
|
108 |
117 |
127 |
140 |
165 |
203 |
216 |
| 300 |
152 |
178 |
203 |
216 |
229 |
267 |
292 |
| 600 |
165 |
190 |
216 |
229 |
241 |
292 |
330 |
| 150 |
H
|
158
|
163
|
193
|
250
|
250
|
291
|
350
|
| 300 |
| 600 |
| 150 |
W
|
100
|
100
|
125
|
160
|
160
|
180
|
240
|
| 300 |
| 600 |
| 150 |
kg
|
4.5 |
6.9 |
9.8 |
13.5 |
19.5 |
28.0 |
35.4 |
| 300 |
4.8 |
7.7 |
11.0 |
16.8 |
21.2 |
32.6 |
38.0 |
| 600 |
5.6 |
7.8 |
12.5 |
17.0 |
23.5 |
38.8 |
42.6 |
