BS 6364 Cryogenic Globe Valve, 1/2-2 Inch, Class 150-800 LB

Key Specifications / Features

Model No.VF-231213-GLV-01

As a leading Cryogenic Globe Valve fabricator, we adhere to international standards, including BS 6364, API 602, ASME B16.34, and BS 5352. Our valves are designed for optimal performance in demanding environments, with sizes ranging from 1/2 to 2 inches. They offer versatile solutions across Class 150-800 LB applications, featuring a Bolted Bonnet for secure sealing. Our Cryogenic Globe Valves come in both Full and Standard Port configurations, ensuring efficient fluid control.

Categories: Forged Steel Globe Valves

Tags: BS 6364 Globe Valve , API 602 Globe Valve , ASME B16.34 Globe Valve , BS 5352 Globe Valve , 1/2 Inch Globe Valve , 2 Inch Globe Valve , Class 150 LB Globe Valve , Class 800 LB Globe Valve

Detail Information

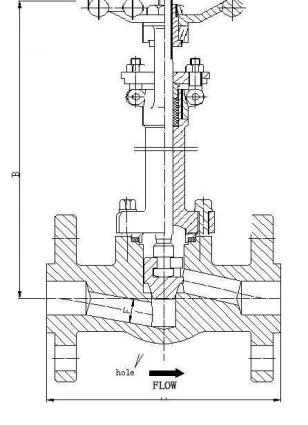

BS 6364 Cryogenic Globe Valve, 1/2-2 Inch, Class 150-800 LB

Design construction:
Design: API 602, ASME B16.34, BS 5352, BS 6364
Testing: API 598
Size: 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, DN15, DN20, DN25, DN32, DN40, DN50
Class: 150 LB, 300 LB, 400 LB, 600 LB, 800 LB, PN20, PN50, PN63, PN100, PN130
Face to face: ASME B16.10
Flanges: ASME B16.5
Spiral wound gasket
Integral backseat
Marking MSS SP25
Outside Screw and Yoke (OS & Y)
Self aligning two piece packing gland
Welded body- bonnet joint also available

Ratings: stainless steel A182- F316
- class 150 = 275 psig @ 100°F 19 bar + 38°C
- class 300 = 720 psig @ 100°F 49 bar + 38°C

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.
