Welded Bonnet Globe Valve, ASTM A105N, 1/4-2 Inch, 150-800 LB

Key Specifications / Features

Model No.VF-231213-GLV-04

Welcome to our Welded Bonnet Globe Valve Plant, where precision meets reliability. Our globe valves, ranging from 1/4 to 2 inches, cater to Class 150-800 LB applications with a design conforming to ASME B16.34 and BS 5352 standards. Crafted from high-quality ASTM A105N material, these valves provide Full & Standard Port options, ensuring optimal flow control. With DN8-DN50 sizing and PN20-PN130 pressure ratings, our valves offer versatility for various industrial applications.

Categories: Forged Steel Globe Valves

Tags: Welded Bonnet Globe Valve , ASME B16.34 Globe Valve , BS 5352 Globe Valve , 1/4 Inch Globe Valve , Class 150 LB Globe Valve , Class 800 LB Globe Valve , 2 Inch Globe Valve , ASTM A105N Globe Valve

Detail Information

Welded Bonnet Globe Valve, ASTM A105N, 1/4-2 Inch, 150-800 LB

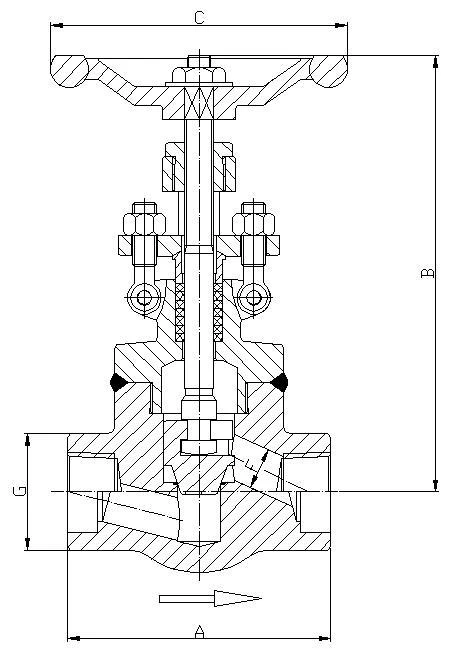

Design Construction:
Design: ASME B16.34, BS 5352
Testing according: API 598
Size: 1/4 Inch, 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, DN6, DN10, DN15, DN20, DN25, DN32, DN40, DN50
Class: 150 LB, 300 LB, 400 LB, 600 LB, 800 LB, PN20, PN50, PN63, PN100, PN130
Body bonnet weld to ASME IX
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Integal backseat
Loose solid disc
Outsind Screw and Yoke(OS & Y)
Self aligning two piece packing gland

Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.
