ASTM A105N Globe Valve, ASME B16.34, 1/4-2 Inch, 900-1500 LB

Key Specifications / Features

Model No.VF-231213-GLV-05

Explore precision and performance with our Forged Steel ASTM A105N Globe Valves. Ranging from 1/4 to 2 inches, these valves are designed to meet Class 900-1500 LB standards and PN150-PN250 pressure ratings. Crafted with precision according to ASME B16.34 and BS 5352, these valves feature a Welded Bonnet Full Port design for seamless flow control.

Categories: Forged Steel Globe Valves

Tags: ASTM A105N Globe Valve , ASME B16.34 Globe Valve , 1/4 Inch Globe Valve , 2 Inch Globe Valve , Class 1500 LB Globe Valve , Class 900 LB Globe Valve

Detail Information

ASTM A105N Globe Valve, ASME B16.34, 1/4-2 Inch, 900-1500 LB

Design Construction:
Design: ASME B16.34, BS 5352
Size: 1/4 Inch, 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, DN6, DN10, DN15, DN20, DN25, DN32, DN40, DN50
Class: 900 LB, 1500 LB, PN 150, PN250
Testing: API 598
Body bonnet weld to ASME IX
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Integal Backseat
Loose Solid Disc

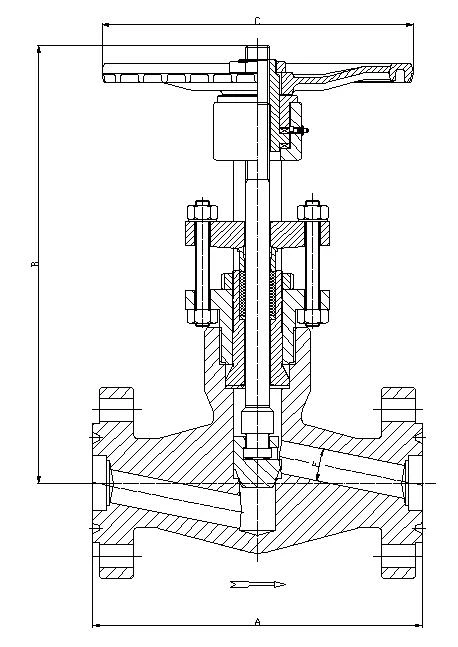

Outsind Screw and Yoke(OS & Y)
Self aligning two piece packing gland
Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.
