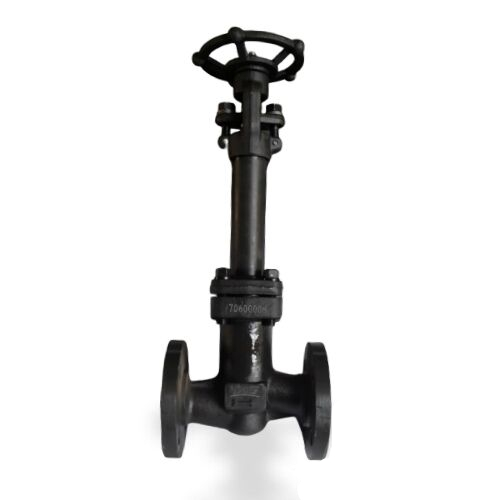

BS 5352 Forged Steel ASTM A182 F316 Globe Valve, DN25, PN40

Detail Information

Name: ASTM A182 F316 Forged Steel Globe Valve, DN25, PN40, BS 5352.

--Extended bonnets with sufficient gas column length, usually specified by customer, are supplied for all valves to keep stem packing at sufficient distance away from the cryogenic fluid to remain functional.

--Cleaning: All cryogenic valves are thoroughly degreased and cleaned and pipe ends are sealed to prevent contamination.

Type: Globe Valve.
Nominal Diameter: DN25.
Nominal Pressure: PN40.
Construction: Cryogenic Type; Needle Disc.
Connection: Flange-C DIN 2526.
Design & Manufacture: BS 5352.
F to F Dimension: EN 558.
Flange Dimension: EN 1092 Form C.
Test & Inspection: EN 12266.
Body Material: F316.
Disc Material: F316.
Seat Material: STL.
Media: Water, Steam, Oil, etc.

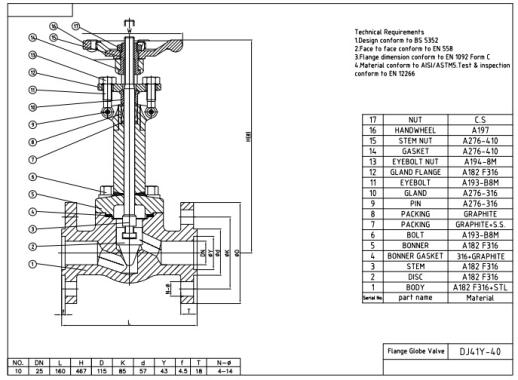

Technical Drawing
Technical Drawing

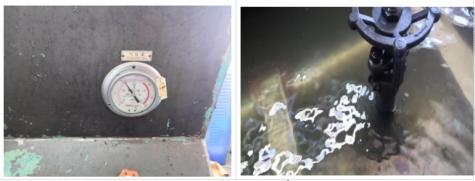

Witness Tests
Witness Tests

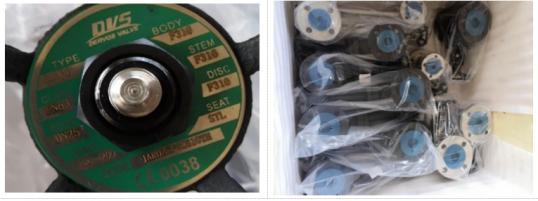

Name Plate & Packing
Name Plate & Packing
