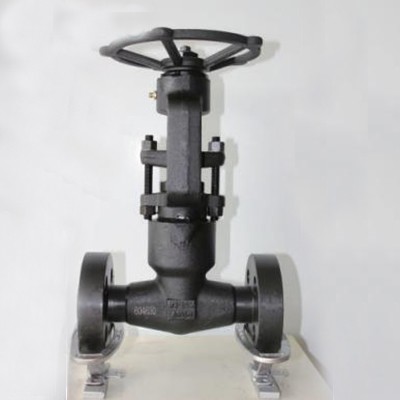

ASTM A105N Globe Valve, Bolted Bonnet, 1/2-2 Inch, 2500 LB

Key Specifications / Features

Model No.VF-231213-GLV-08

Unlock precision and reliability in fluid control with our ASTM A105N Globe Valves, meticulously manufactured to meet ASME B16.34 and BS 5352 standards. These valves, ranging from 1/2 to 2 inches and available in DN15-DN50 sizes, are engineered for Class 2500 LB and PN420 applications, ensuring steadfast performance under high pressures. The Bolted Bonnet design guarantees secure containment, while the Full Port configuration enhances fluid flow.

Categories: Forged Steel Globe Valves

Tags: ASTM A105N Globe Valve , ASME B16.34 Globe Valve , BS 5352 Globe Valve , 1/2 Inch Globe Valve , 2 Inch Globe Valve , Class 2500 LB Globe Valve

Detail Information

ASTM A105N Globe Valve, Bolted Bonnet, 1/2-2 Inch, 2500 LB
ASTM A105N Globe Valve, Bolted Bonnet

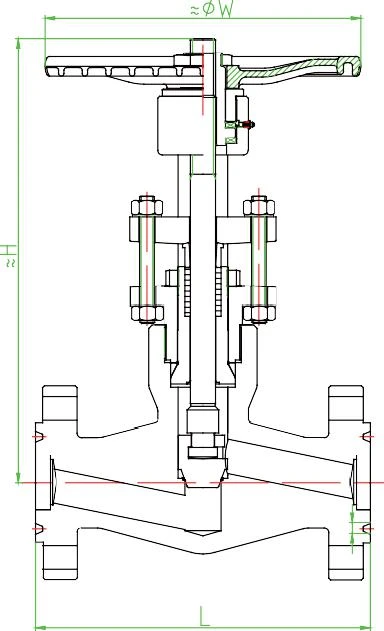

Design Construction:
Design: ASME B16.34, BS 5352
Testing: API 598
Size: 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, DN15, DN20, DN25, DN32, DN40, DN50
Class: 2500 LB
Face to face according to ASME B16.10
Flanges according to ASME B16.5
Marking MSS SP25
Integral backseat
Integral body flanges
Full port type
Outside Screw and Yoke (OS&Y)
Loose Disc Stem Assembly
Body Bonnet Gasket ring joint type
Spiral wound type gasket on request
Self aligning two piece packing gland
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.
