BS 5352 Check Valve, ASTM A105, 1/2-2 Inch, Class 150-600 LB

Key Specifications / Features

Model No.VF-231214-CV-02

Introducing our BS 5352 and ASME B16.34 compliant Check Valve Plant – a precision-engineered solution for diverse industrial applications. Available in sizes ranging from 1/2 to 2 inches, with Class ratings spanning 150 to 600 LB, this check valve ensures reliable performance across various pressure conditions. Crafted from high-quality ASTM A105 material, it guarantees durability and longevity in service.

Categories: Forged Steel Check Valves

Tags: BS 5352 Check Valve , 1/2 Inch Check Valve , 2 Inch Check Valve , ASME B16.34 Check Valve , Class 600 LB Check Valve , ASTM A105 Check Valve

Detail Information

BS 5352 Check Valve, ASTM A105, 1/2-2 Inch, Class 150-600 LB


Design Construction:
Design: ASME B16.34, BS 5352
Materials: ASTM A105
Size: 1/2 Inch, 3/4 Inch, 1, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, DN15, DN20, DN25, DN32, DN40, DN50
Class: 150 LB, 300 LB, 400 LB, 600 LB, PN20, PN50, PN63, PN100
Testing: API 598
Face to face: ASME B16.10
Flanges: ASME B16.5
Spring available on request for Piston
Marking MSS SP25
Ball, Check Valve
Spiral wound gasket
Integral body flanges

Ratings:
- carbon steel class 150 285 psig @ 100°F 20 bar + 38°C
- carbon steel class 300 740 psig @ 100°F 51 bar + 38°C

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).

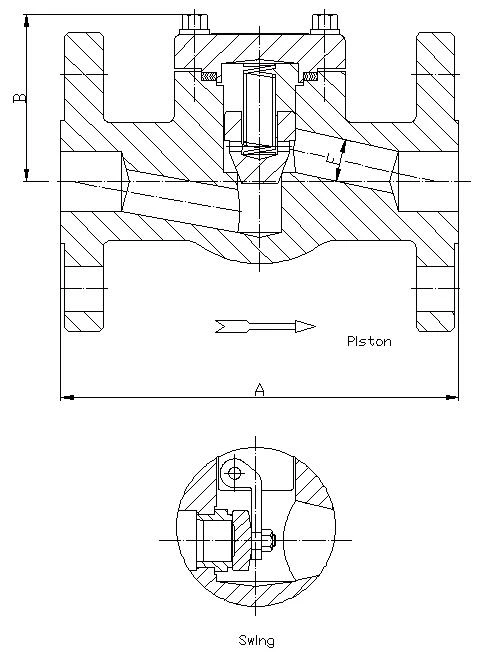

150LB-600LB





 		 NPS （in) 1/2 3/4 1 1/4 11/2 2
DN mm 15 20 25 32 40 50
D 13 18 24 29 36.5 46.5



L



 		 Class 150 105 117 127 140 165 203
Class 300 152 178 203 216 229 267
Class 600 165 190 216 229 241 292
PN 1.6-4.0 130 150 160 190 200 230
PN 6.4-10.0 170 190 210 230 260 300
H Lift/Swing 61/61 78/78 84/84 103/101 118/120 130/133



kg



 		 Class 150 3.4 4.4 8.2 8.9 12.0 14.3
Class 300 3.7 4.8 8.8 9.6 13.7 17.8
Class 600 4.0 5.8 9.5 10.4 15.6 24.5
PN 4.0 3.5 4.6 8.5 9.2 12.8 16.1
PN 10.0 4.3 6.1 10.0 11.4 17.0 28.7
