ASTM A105 Check Valve, ASME B16.34, 1/2-2 Inch, 1500-2500 LB

Key Specifications / Features

Model No.VF-231214-CV-03

Experience excellence with our Check Valve series, meticulously designed to meet and exceed the rigorous standards of ASME B16.34 and BS 5352. Crafted with precision, these valves are available in sizes ranging from 1/2 to 2 inches, catering to DN15 to DN50 specifications. With Class ratings spanning from 150 to 600 LB, these valves are constructed from high-quality ASTM A105 material, ensuring both durability and outstanding performance across various applications.

Categories: Forged Steel Check Valves

Tags: ASTM A105 Check Valve , ASME B16.34 Check Valve , 1/2 Inch Check Valve , 2 Inch Check Valve , Class 150 LB Check Valve , BS 5352 Check Valve , Class 2500 LB Check Valve

Detail Information

ASTM A105 Check Valve, ASME B16.34, 1/2-2 Inch, 1500-2500 LB

Design Construction:
Design: ASME B16.34, BS 5352
Materials: ASTM A105
Size: 1/2 Inch, 3/4 Inch, 1, 1-1/4 Inch, 1-1/2 Inch, 2 Inch, DN15, DN20, DN25, DN32, DN40, DN50
Class: 1500 LB, 2500 LB, PN250, PN420
Testing: API 598
Face to face: ASME B16.10
Flanges: ASME B16.5
Marking MSS SP25
Integral body flanges
Body Bonnet Gasket ring joint type
Spiral wound type gasket on request
Spring available on request for Piston and Ball Check Valve

Ratings:
- carbon steel class 2500 6170 psig @ 100°F 425 bar + 38°C

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).

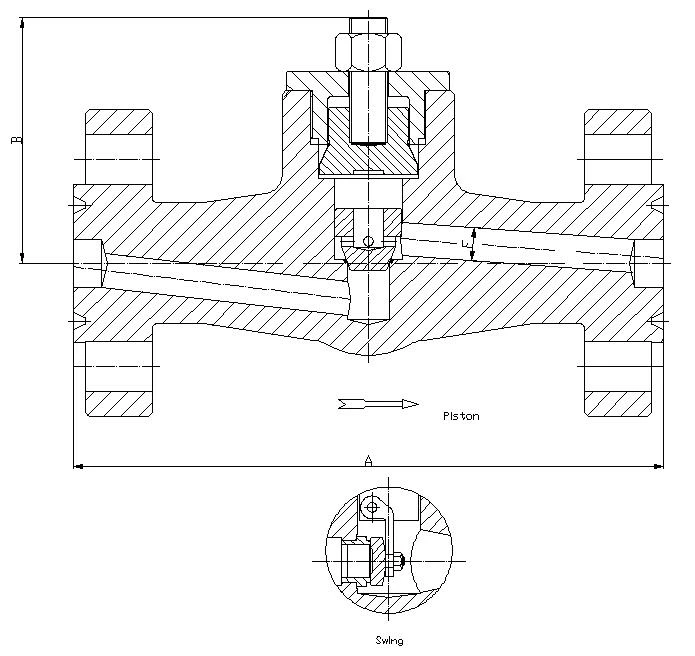

2500 LB










 		 NPS （in) 1/2 3/4 1 11/4 11/2 2
DN mm 15 20 25 32 40 50
D 13 18 24 29 36.5 46.5


L(RF)

 		 900; Class 1500 216 229 254 279 305 368
2000; Class 2500 264 273 308 349 384 451
PN16.0 MPa 170 190 210 230 260 300


H

 		 900; Class 1500 117.5 117.5 117.5 149 149 195
2000; Class 2500 125 125 125 166 166 210
PN16.0 MPa 117.5 117.5 117.5 149 149 195


kg

 		 900; Class 1500 10.5 11.9 13.9 26.9 25.1 32.0
2000; Class 2500 12.6 14.9 16.5 28.0 27.6 34.5
PN16.0 MPa 9.8 10.5 12.0 24.4 24.8 30.1
