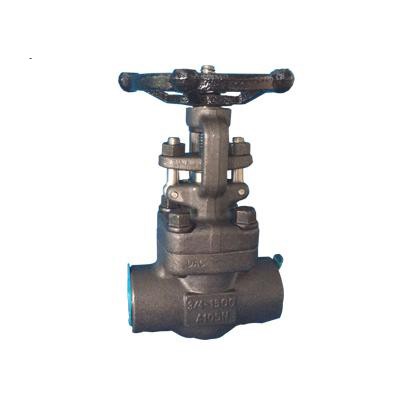

ASTM A105N Weld Bonnet Gate Valve, DIN 3352, 3/4 IN, 1500 LB

Key Specifications / Features


Model No.VF-231212-FSGV-15

Are you seeking a trusted manufacturer for ASTM A105N Weld Bonnet Gate Valves? Your search ends here! We specialize in producing high-quality valves meeting DIN 3352 standards. Our 3/4-inch gate valves, with a Class 1500 LB rating, DN20, and PN250 pressure class, are designed for optimal performance. Crafted from premium ASTM A105N material and featuring a NO.5 Trim, these valves provide reliable and durable service.


Categories: Forged Steel Gate Valves

Tags: ASTM A105N Gate Valve , DIN 3352 Gate Valve , 3/4 Inch Gate Valve , Class 1500 LB Gate Valve , DN20 Gate Valve , PN250 Gate Valve

Detail Information

Standard: DIN 3352
Material: ASTM A105N
Trim: NO.5
Size: 3/4 Inch
Class Rate: 1500LB
Ends: NPT, NPT*SW, SW
Operating: Hand Wheel
Wall Thickness: API 602, ASME B16.34.
Face-to-face Dimensions for Flanged Valves: ASME B16.10.
Flange Design: ASME B16.5.
Socket Weld Ends to ASME B16.11.
Screwed Ends (NPT) to ASME B1.20.1.
Butt Welding Ends: ASME B16.25.
Pressure Testing: API 598.

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).


Nickname*:
E-mail*:
Rate*:
Comments*:

Next: DIN 3352 Gate Valve, ASTM A182 F316, 3/4 Inch, 1500 LB, SW

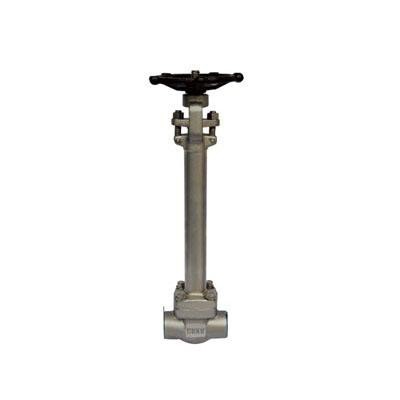

Previous: API 602 Forged Cryogenic Gate Valve, 150LB-2500LB, 1/2-4 Inch
