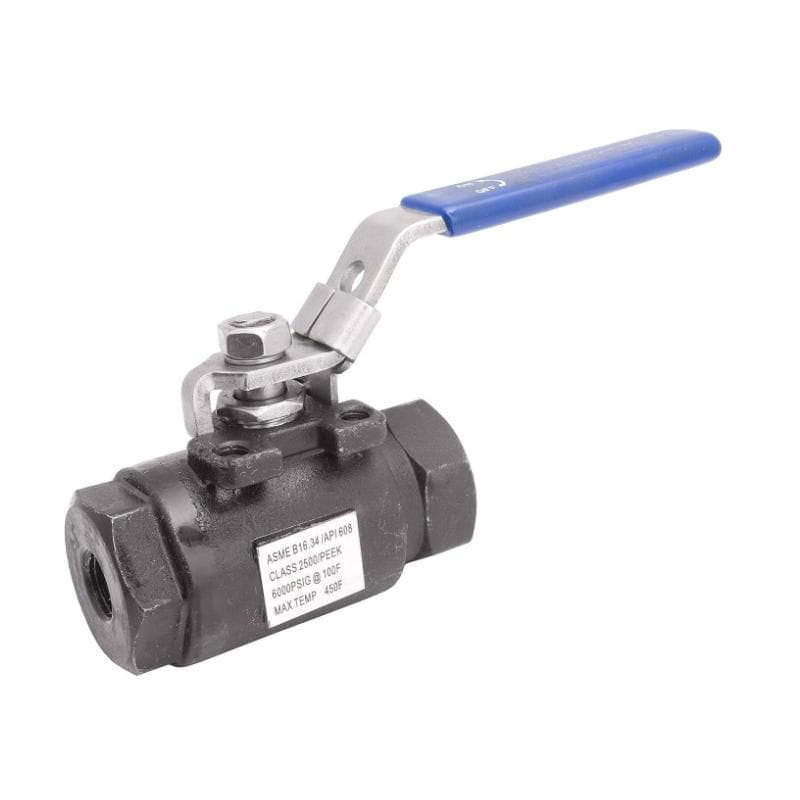

Threaded Ball Valve, ASTM A216 WCB, 1-1/2 Inch, 6000 PSI

Detail Information

Structural Features


Item：Forged Carbon Steel Ball Valve - High Pressure 6000 PSI
Standard: NACE MR-01-75
Materials Body: Forged Carbon Steel, ASTM A216 WCB
Size: 1-1/4 Inch
Pressure Rating: 6000 PSI CWP
Ball: ASTM A182 F316, SS 316
Port: Full Bore
Feature: Two-Piece Body, Threaded, Anti-Static Ball Valve Device, Mounting Pad, Blowout Proof Ball Valve Stem, Locking Device Lever.
Construction: Seal Weld
Test: API 598



Materials of main parts



No

Part

Matarial

1

BODY

ASTM A216 WCB

2

SEAT

PEEK

3

BALL

SS 316

4

WASHER

SS 316

5

BONNET

ASTM A216 WCB

6

GASKET

SS 304

7

WASHER

GRAPHITE

8

STEM

SS 316

9

PACKING

RPTFE

10

GLAND

SS 304

11

HANDLE

SS 201 Lever + PVC

12

Hexagon NUT

Stainless steel DIN 934 A2-70


Dimensions (mm)



Size

Port

Pressure

L (mm)

1/4 IN

FP

6000 PSI

80

3/8 IN

FP

6000 PSI

80

1/2 IN

FP

6000 PSI

102

3/4 IN

FP

6000 PSI

108

1 IN

FP

6000 PSI

121

1-1/4 IN

FP

6000 PSI

121

1-1/2 IN

FP

6000 PSI

132

2 IN

RP

6000 PSI

156
