ISO 15761 Forged Y Globe Valve, 3/8-2 Inch, 150-3500 LB

Key Specifications / Features

Model No.YV-GBV-05

ISO 15761 Forged Y Globe Valve Manufacturer: ISO 15761 Forged Y Globe Valve, 3/8-2 Inch, Class 150 LB-3500 LB, ASTM A105/F304, API 602, ASME B16.34.

Categories: Forged Steel Globe Valves

Tags: ASME B16.34 Forged Y Globe Valve , API 602 Forged Y Globe Valve , ASTM A182 F304 Forged Y Globe Valve , ASTM A105 Forged Y Globe Valve , 3500 LB Forged Y Globe Valve , 150 LB Forged Y Globe Valve , 2 Inch Forged Y Globe Valve , 3/8 Inch Forged Y Globe Valve , ISO 15761 Forged Y Globe Valve

Detail Information

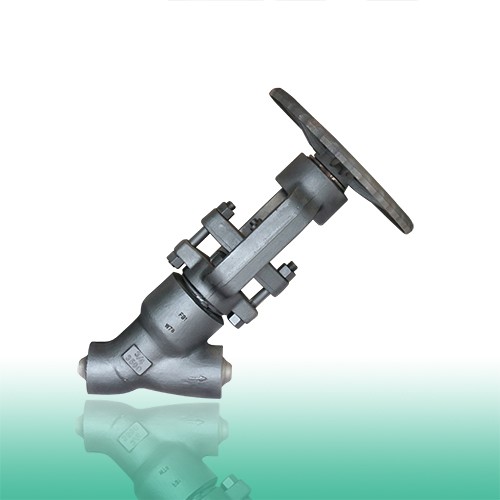

ISO 15761 Forged Y Globe Valve
Design Specifications:
Material: A105, F304.
Size: From NPS 3/8 to NPS 2.
Class: From ASME 150 to ASME 3500LB.
Design: API 602, ISO 15761, ASME B16.34.
Wall Thickness: API 602, ASME B16.34.
Pressure-Temperature Rating: ASME B16.34.
Face-to-Face Dimensions for Flanged Valves: ASME B16.10
Flange Design: ASME B16.5.
Socket Weld Ends to ASME B16.11.
Screwed Ends (NPT) to ASME B1.20.1.
Butt Welding Ends: ASME B16.25.
Pressure Testing: API 598.

More Body Materials:
A105, F304, F304L, F316, F316L, LF2, F11, F22, F5, F51, F321, F91.

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
