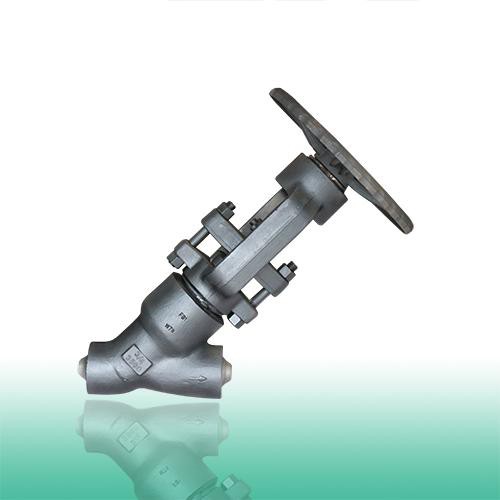

ASTM A182 F91 Weld Bonnet Globe Valve, 3/4 Inch, 3500 LB, BW

Key Specifications / Features

Model No.VF-231213-GLV-17

Are you looking for a high-performance Y Type Weld Bonnet Globe Valve? Our valve, manufactured with precision and expertise, is crafted with ASTM A182 F91 material, ensuring robustness and durability. With a versatile 3/4-inch size and a Class 3500 LB rating, this valve is designed to excel under extreme pressure conditions. The NO.5 Trim guarantees precise fluid control, while the Butt Weld (BW) End ensures a secure and leak-free connection.

Categories: Forged Steel Globe Valves

Tags: Class 3500 LB Globe Valve , ASTM A182 F91 Globe Valve , DIN 3356 Globe Valve , 3/4 Inch Globe Valve

Detail Information

Standard: DIN 3356
Material: ASTM A182 F91
Trim: NO.5
Size: 3/4 Inch, DN20
Class Rate: 3500 LB, PN560
Ends: BW
Testing: API 598
Face to face: ASME B16.10
Flanges: ASME B16.5
Spiral wound gasket
Integral backseat
Integral body flanges
Marking MSS SP25
Outside Screw and Yoke (OS & Y)
Loose disc stem assembly
Self aligning two piece packing gland

- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

More Body Materials:
ASTM A105, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A350 LF2, ASTM A182 F11, ASTM A182 F22, ASTM A182 F5, ASTM A182 F51, ASTM A182 F321.
