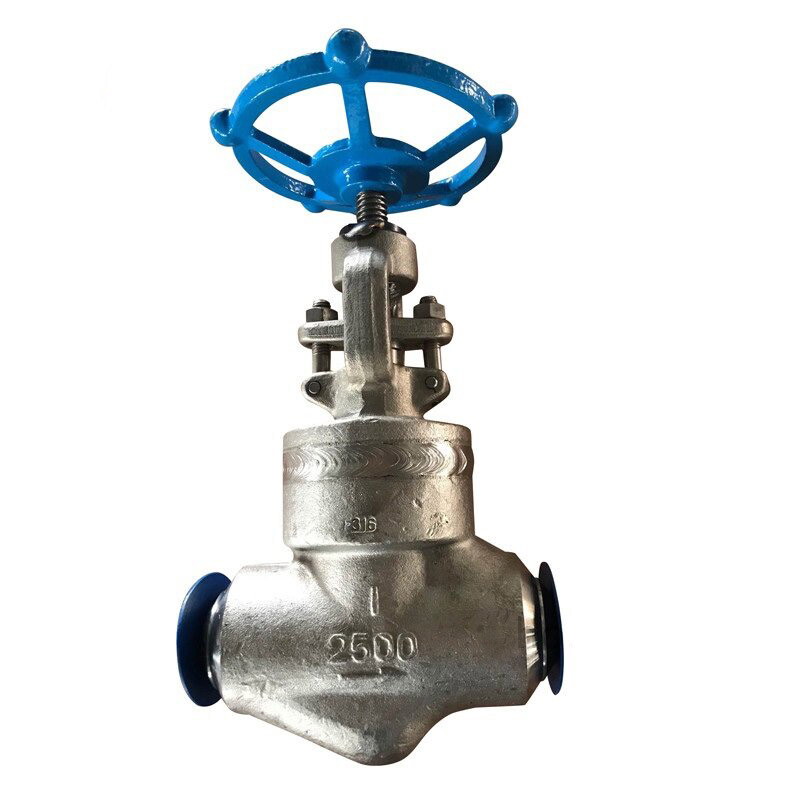

API 602 Weld Bonnet Globe Valve, A182 F316, 1 Inch, 2500 LB

Key Specifications / Features

Model No.VF-240221-FSGBV-01

Experience precision engineering at our weld bonnet globe valve mill in China. Manufactured to the highest standards, our valves meet API 602 and ASME B16.34 specifications, ensuring reliability and durability. Crafted from premium ASTM A182 F316 stainless steel, our 1-inch valves are designed to withstand high pressures, with a Class 2500 LB rating.

Categories: Forged Steel Globe Valves

Tags: 1 Inch Globe Valve , Class 2500 LB Globe Valve , API 602 Globe Valve , ASTM A182 F316 Globe Valve , ASME B16.34 Globe Valve , BW End Globe Valve , Handwheel Operated Forged Globe Valve

Detail Information

Design: API 602, ASME B16.34, BS 5352, DIN 3352
Body Materials: ASTM A105,ASTM A350 LF2, ASTM A182 F9, ASTM A182 F11, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, etc.
Operation: Handwheel
Face to Face: ASME B16.10, EN 558, DIN 3202
End Flange: ASME B16.5, DIN 2533
Butt welding Ends: ASME B16.25, DIN 3239
Inspection and Test: API 598, DIN 3202

Products Range
Size: 1/2- 2 Inch (DN15 - DN50)
Rating: ANSI Class 150 - 2500 LB (PN10 - PN320)

Full port or reduced port design
General or needle disc
Bolted bonnet, welded bonnet, or pressure sealed bonnet
Flanged, butt-welded, socket- welded, or threaded ends
Optional Y structure

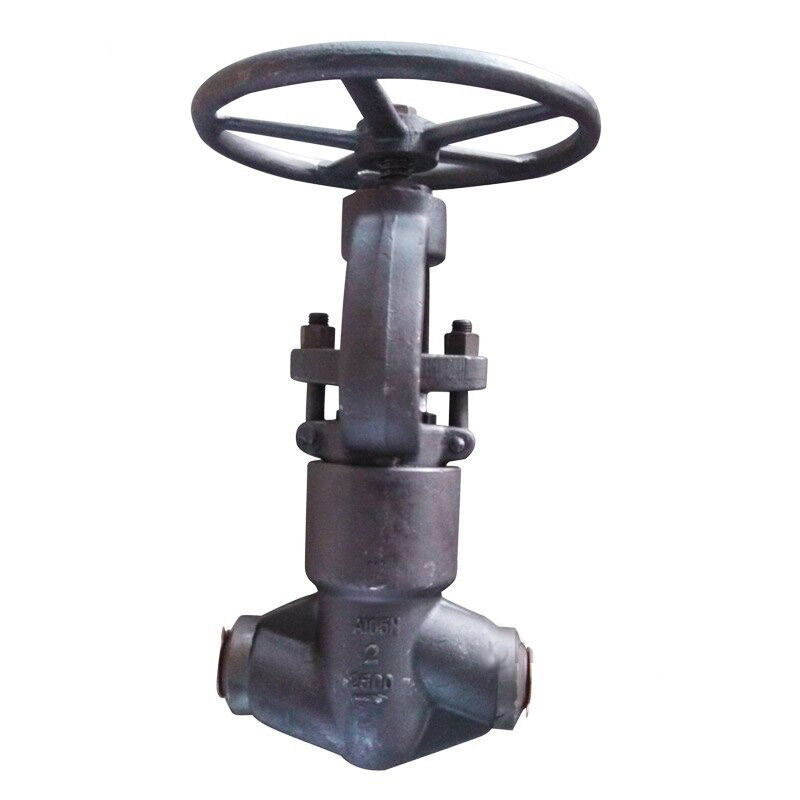

Next: API 602 Globe Valve, ASTM A105N, 2 Inch, Class 2500 LB, BW

Previous: ASTM A350 LF6 CL 2 Globe Valve, API 602, 1 Inch, 4500 LB, BW
