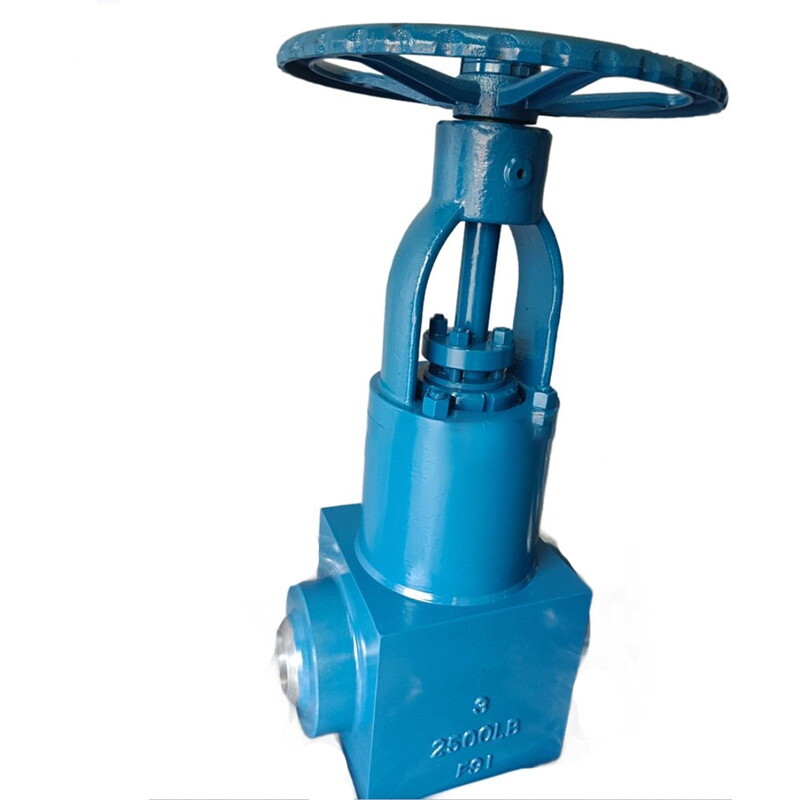

API 602 Gate Valve, ASTM A182 F91, 3 Inch, 2500 LB, BW End

Key Specifications / Features

Model No.VF-240220-FSGV-08

Supplier of API 602 Gate Valves: Our high-quality gate valves, designed according to API 602 standards, offer superior performance and durability. With a size of 3 inches and a Class 2500 LB rating, these valves are forged from robust ASTM A182 F91 steel, ensuring reliability in demanding environments.

Categories: Forged Steel Gate Valves

Tags: API 602 Gate Valve , ASTM A182 F91 Gate Valve , 3 Inch Gate Valve , Class 2500 LB Gate Valve , Reduced Bore Gate Valve , BW End Gate Valve

Detail Information

Standard: API 602
Material: ASTM A182 F91
Size: 3 Inch, DN80
Pressure: Class 2500 LB, PN420
Port: Reduce Port
End Connection: BW
Face to Face: ASME B16.10
Operating: Hand Wheel
Test & Inspection: API 598
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -29ºC - +610ºC


Next: ASTM B462 UNS N08020 Gate Valve, API 602, 1 Inch, 800 LB, SW

Previous: ASTM A182 F904L Gate Valve, API 602, 3/4 Inch, 300 LB, RF

Similar Products
