Three-Piece Forged Ball Valve, 1/2-4 Inch, 150-2500 LB

Key Specifications / Features

Model No.YV-BAV-02

Three-Piece Forged Ball Valve Manufacturer: Three-Piece Forged Ball Valve, 1/2-4 Inch, Class 150-2500LB, ASTM A182 F304, ASME B16.34, API 6D, DIN 3357.

Categories: Forged Steel Ball Valves

Tags: ASTM A182 F304 Three-Piece Forged Ball Valve , 4 Inch Three-Piece Forged Ball Valve , 1/2 inch Three-Piece Forged Ball Valve , 150LB Three-Piece Forged Ball Valve , 2500LB Three-Piece Forged Ball Valve , API 6D Three-Piece Forged Ball Valve , ASME B16.34 Three-Piece Forged Ball Valve , DIN 3357 Three-Piece Forged Ball Valve

Detail Information

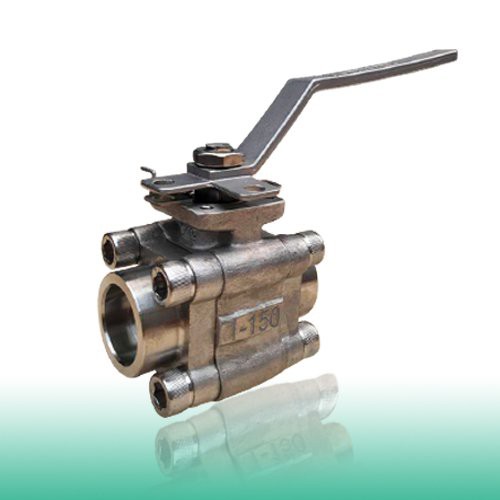

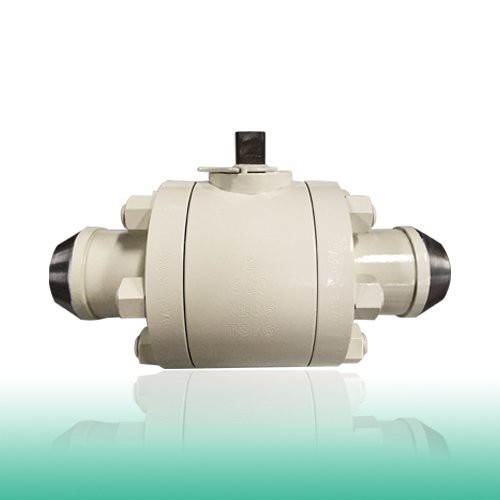

Three-Piece Forged Ball Valve
Specifications:
Body Material: ASTM A182 F304.
Size: From NPS 1/2 to NPS 4.
CLASS: From ASME 150 to ASME 2500LB.
Design: API 6D, ASME B16.34, DIN 3357.
Wall thickness: ASME B16.34.
Pressure-temperature Rating: ASME B16.34.
Face-to-face Dimensions for Flanged Valves: ASME B16.10-API 6D.
Flange Design: ASME B16.5.
Socket Weld Ends to ASME B16.11.
Screwed Ends (NPT) to ASME B1.20.1- ASME B16.11.
Butt Welding Ends: ASME B16.25.
Pressure Testing: API 598.

Body Material:
A105, A182 F304, A182 F304L, A182 F316, A182 F316L, A350 LF2, A182 F11, A182 F22, A182 F5, A182 F51, A182 F321.

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
