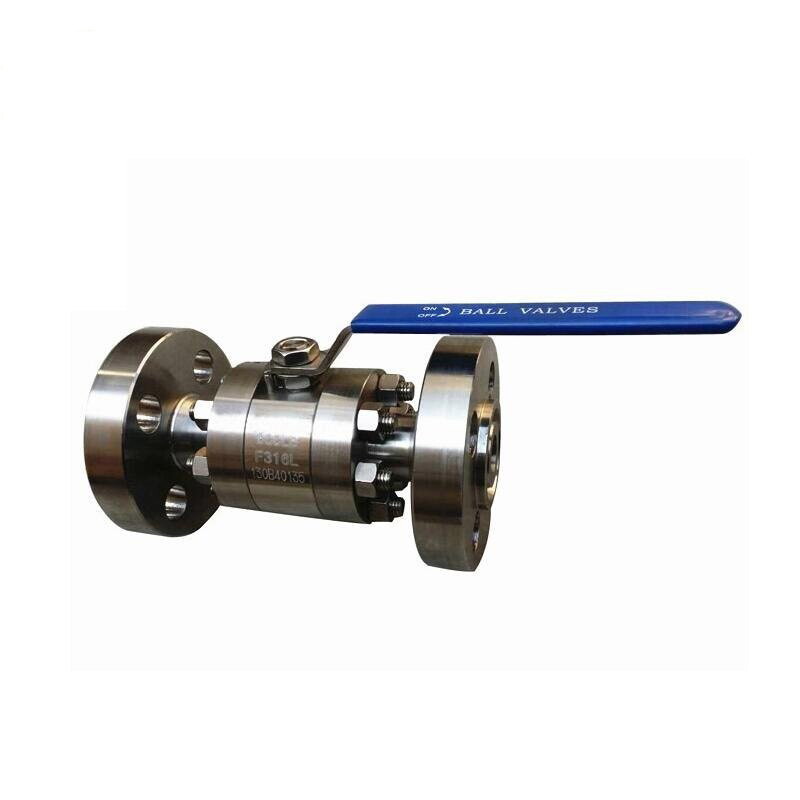

Three Piece Ball Valve, ASTM A182 F316L, 2 Inch, 1500 LB, RF

Key Specifications / Features

Model No.VF-240221-FSBV-04

Our state-of-the-art three-piece ball valve, manufactured to meet BS 5352 and API 602 standards, features exceptional quality and performance. Crafted from ASTM A182 F316L stainless steel, this 2-inch valve is designed for Class 1500 LB applications, ensuring reliability even in high-pressure environments up to PN250. With its level operation mechanism

Categories: Forged Steel Ball Valves

Tags: 2 Inch Ball Valve , BS 5352 Ball Valve , Class 1500 LB Ball Valve , ASTM A182 F316L Ball Valve , Three-Pieces Ball Valve , RF End Ball Valve

Detail Information

Standard: BS 5352, API 602
Material: ASTM A182 F316L
Size: 2 Inch, DN50
Pressure: Class 1500 LB, PN250
End Connection: RF
Operating: Lever
Test & Inspection: API 598
Seat: PTFE, RPTFE, PTFE
Face to Face: ASME B16.10
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -29℃ – 120℃
