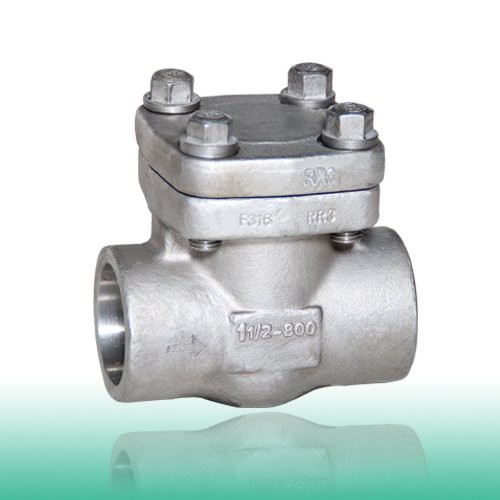

ASME B16.34 Forged Check Valve, 3/8-4 Inch, 150-2500 LB

Key Specifications / Features

Model No.YV-CKV-03

ASME B16.34 Forged Check Valve Manufacturer: ASME B16.34 Forged Check Valve, 3/8-4 Inch, Class 150LB-2500 LB, ASTM A182 F316, API 602, ISO 15761.

Categories: Forged Steel Check Valves

Tags: ASTM A182 F316 Forged Check Valve , 3/8 Inch Forged Check Valve , ISO 15761 Forged Check Valve , API 602 Forged Check Valve , Class 150 Forged Check Valve , Class 2500 Forged Check Valve , ASME B16.34 Forged Check Valve , 4 Inch Forged Check Valve

Detail Information

ASME B16.34 Forged Check Valve
Design Specifications:
Body Material: ASTM A182 F316.
Size: from NPS 3/8 to NPS 4 Inch.
Class: from ASME 150 to ASME 2500LB.
Design: API 602, ISO 15761, ASME B16.34.
Wall Thickness: API 602, ASME B16.34.
Pressure-temperature Rating: ASME B16.34.
Face-to-face Dimensions for Flanged Valves: ASME B16.10.
Flange Design: ASME B16.5.
Socket Weld Ends to ASME B16.11.
Screwed Ends (NPT) to ASME B1.20.1.
Butt Welding Ends: ASME B16.25.
Pressure Testing: API 598.

More Body Materials:
A105, A182 F304, A182 F304L, A182 F316, A182 F316L, A350 LF2, A182 F11, A182 F22, A182 F5, A182 F51, A182 F321.

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
