API 602 Swing Check Valve, ASTM A105, 1 Inch, 2500 LB, PSB

Key Specifications / Features

Model No.VF-240224-FSCV-06

Discover our Pressure Seal Bonnet Swing Check Valve, meticulously crafted from Forged Steel ASTM A105, designed to excel under demanding conditions. With a 1-inch size, it boasts a Class 2500 LB rating and DN25 specifications, ensuring resilience in high-pressure settings. Its PN420 pressure rating underscores its suitability for robust industrial applications.

Categories: Forged Steel Check Valves

Tags: ASTM A105 Check Valve , 1 Inch Check Valve , Class 2500 LB Check Valve , API 602 Check Valve , RF End Check Valve

Detail Information

Standard: API 602
Material: ASTM A105
Size: 1 Inch, DN25
Pressure: Class 2500 LB, PN420
End Connection: RF
Test & Inspection: API 598
Face to Face: ASME B16.10
Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
Working Temperature: -196 - 560ºC

Structure features:

Bolted bonnet,Welded bonnet,Pressure seal bonnet
Forged Steel,Piston,Ball or Swing type
Integral Body Seat for Piston and Ball Check valves
Separated Seat Ring design for swing check valves
Spiral Wound Gasket or Oval Ring Joint gasket


Next: ASTM B148 C95800,C95400,C95500 Lift Check Valve, 1 1/2 IN, 150 LB

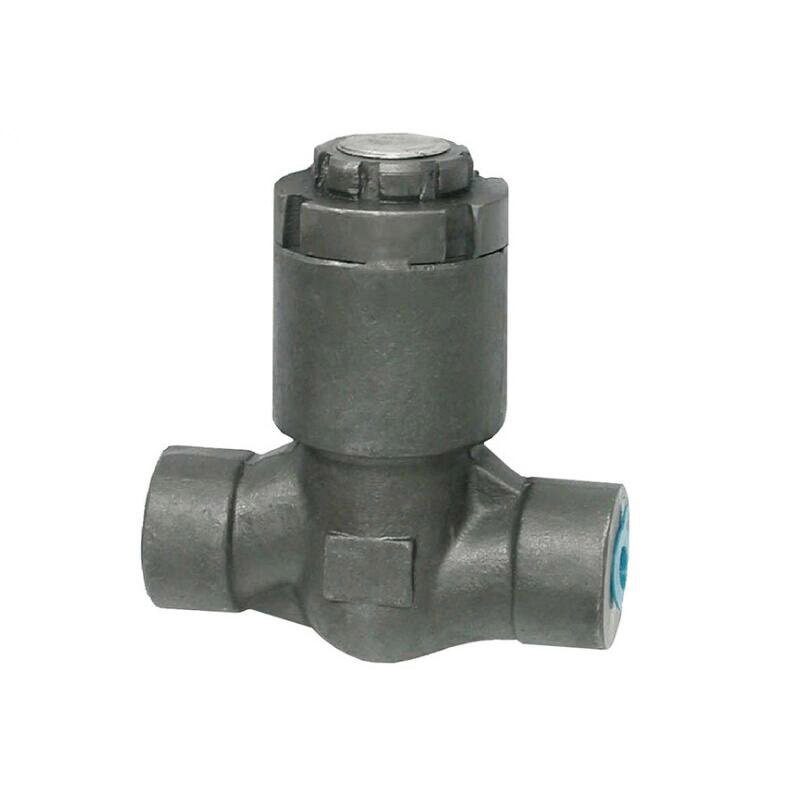

Previous: Lift Check Valve, ASTM A105N, API 602, 2 Inch, 1500 LB, SW
