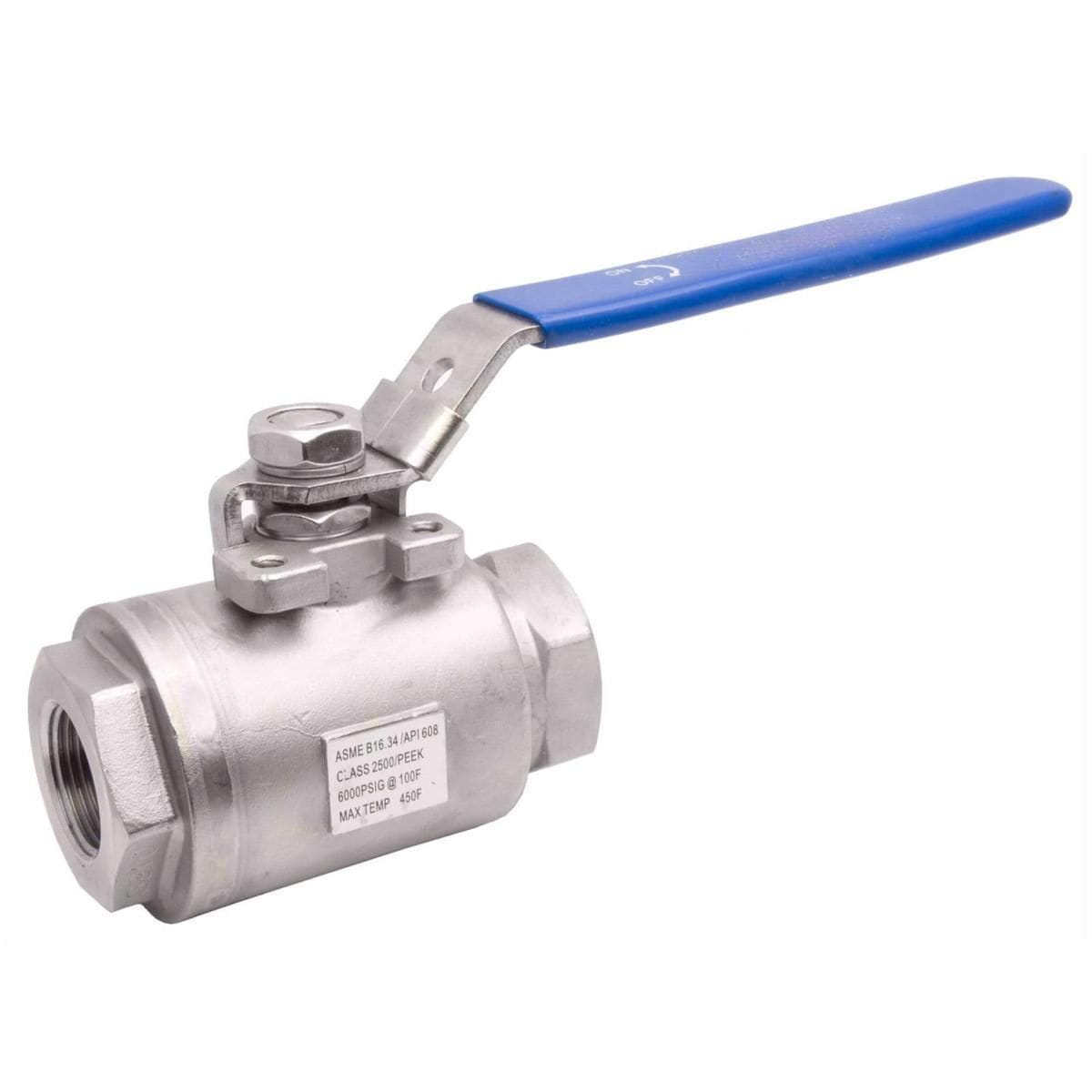

2 Piece Forged Stainless Steel Ball Valve, 6000 WOG PSI CWP

Detail Information

The valve body of the 6000 psi internal thread ball valve is cast by the silica gel process, resulting in a well-designed structure and pleasing form. The seat of the 6000 psi 2 PC threaded ball valve employs an elastic sealing arrangement, ensuring dependable seals and effortless operation. The valve stem features a bottom-mounted structure with an inverted seal, preventing any forceful ejection during instances of abnormal pressure within the valve chamber. This 6000 psi forged stainless steel valve is suitable for working within a pressure range of 1.0 MPa to 12.5 MPa, with operational temperatures spanning from -29°C to 18°C (utilizing a reinforced polytetrafluoroethylene sealing ring) or from -29°C to 300°C (employing an aligned polystyrene sealing ring). The 6000 psi internal thread forged steel ball valve finds its utility in cutting off or facilitating the flow of media within pipelines. With a diverse selection of materials, it can accommodate an array of mediums, including water, steam, oil, nitric acid, and acetic acid.


Structural Features


Item´╝ÜForged Stainless Steel Ball Valve - High Pressure 6000 PSI
Feature: 2-Piece Body, Threaded, Blowout proof Ball Valve stem, Locking Device Lever, Anti-Static Ball Valve Device, Mounting Pad.
construction: Seal Weld
Standard: NACE MR-01-75
Size: ¼ - 2 Inch, Full Port: ¼  - 1 ½ Inch, Reduced Port: 2 Inch
Pressure Rating: 6000 PSI CWP
Materials Body: ASTM A351 CF8M, Forged Stainless Steel
Ball: SS 316
Test: API 598



Materials of main parts



No

Part

Matarial

1

BODY

ASTM A351 CF8M

2

SEAT

PEEK

3

BALL

SS 316

4

WASHER

SS 316

5

BONNET

ASTM A351 CF8M

6

GASKET

SS 304

7

WASHER

GRAPHITE

8

STEM

SS 316

9

PACKING

RPTFE

10

GLAND

SS 304

11

HANDLE

SS 201 Lever + PVC

12

NUT

Stainless steel DIN 934 A2-70






Dimensions (mm)



Size

Port

Pressure

L (mm)

1/4 IN

FP

6000 PSI

80

3/8 IN

FP

6000 PSI

80

1/2 IN

FP

6000 PSI

102

3/4 IN

FP

6000 PSI

108

1 IN

FP

6000 PSI

121

1-1/4 IN

FP

6000 PSI

121

1-1/2 IN

FP

6000 PSI

132

2 IN

RP

6000 PSI

156
