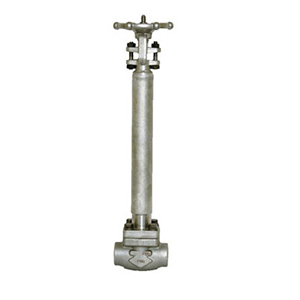

2 Inch Cryogenic Gate Valve Forged API 602 F316 1500 LB Flanged

Detail Information

VF's Forged Cryogenic Valves are specially designed for gas treatment processes and storage and transportation of liquefied gasses such as LNG, liquid nitrogen, Oxygen, etc. These forged valves are required to be operated to give assured leakage rates. These valves which are recommended to use below -50℃ are designed with an extended bonnet which separates the operator and stem seal from the cold temperature. These valves also feature the 12-inch gas column. Extended bonnet as per MESC SPE 77/200 & SPE 77/209 can also be given.

Name: Cryogenic Gate Valve.
Material: ASTM A182 F316.
Standard: API 602, BS 6364.
Size: 1/2 to 2 Inch.
Pressure: 150 LB to 1500 LB.
Bonnet: Extended Bonnet.
Working Temperature: Below -50℃.
Ends: Socket Welded, Butt Welded, Flanged.

Nickname*:
E-mail*:
Rate*:
Comments*:

Next: Bolted Bonnet Forged Steel Gate Valve API 602 2 Inch CL1500

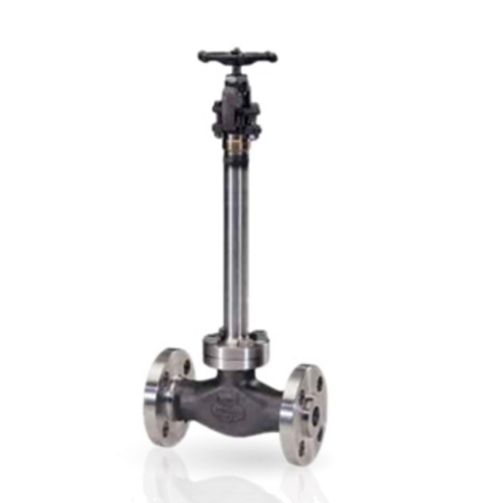

Previous: Flanged Cryogenic Gate Valve, Forged, API 602, 1/4IN, CL150
