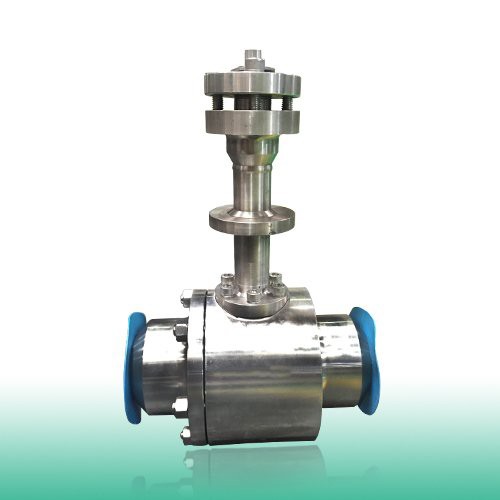

Cryogenic Forged Ball Valve, 1/2-4 Inch, 150LB-2500LB

Key Specifications / Features

Model No.YV-BAV-03

Cryogenic Forged Ball Valve Manufacturer: Cryogenic Forged Ball Valve, 1/2-4 Inch, 150LB-2500LB, ASTM A350 LF2, API 6D, API 608, ASME B16.34, DIN 3357.

Categories: Forged Steel Ball Valves

Tags: DIN 3357 Cryogenic Forged Ball Valve , ASME B16.34 Cryogenic Forged Ball Valve , API 608 Cryogenic Forged Ball Valve , API 6D Cryogenic Forged Ball Valve , ASTM A350 LF2 Cryogenic Forged Ball Valve , 2500LB Cryogenic Forged Ball Valve , 150LB Cryogenic Forged Ball Valve , 4 Inch Cryogenic Forged Ball Valve , 1/2 Inch Cryogenic Forged Ball Valve

Detail Information

Cryogenic Forged Ball Valve
Design Specifications:
Body Material: ASTM A350 LF2.
Size: From NPS 1/2 to NPS 4.
CLASS: From ASME 150 to ASME 2500LB.
Design: API 6D, API 608, ASME B16.34, DIN 3357.
Wall Thickness: ASME B16.34.
Pressure-temperature Rating: ASME B16.34.
Face-to-face Dimensions for Flanged Valves: ASME B16.10-API 6D.
Flange Design: ASME B16.5.
Socket Weld Ends to ASME B16.11.
Screwed Ends (NPT) to ASME B1.20.1- ASME B16.11.
Butt Welding Ends: ASME B16.25
Pressure Testing: API 598

More Body Materials:
F316,F316L, LF2.

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
